QR Code Reader

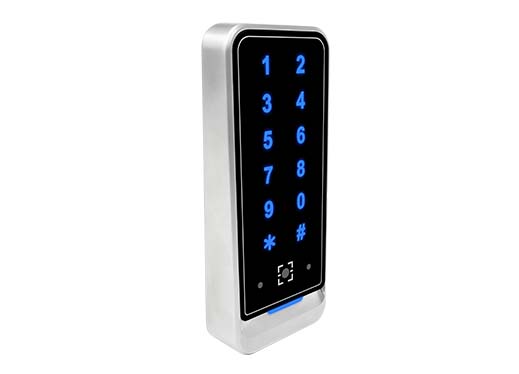

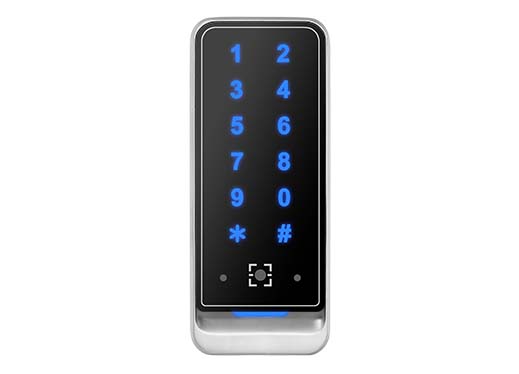

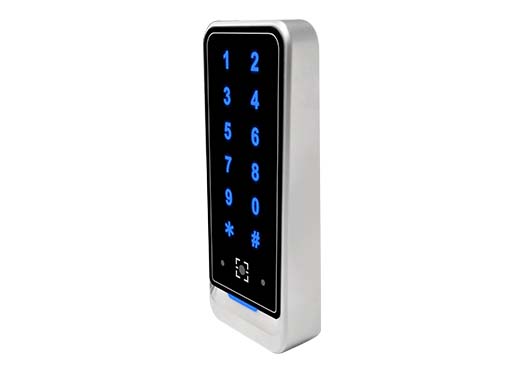

QRT378 QR code integrated machine

QRT378 series QR code integrated machine is a new generation of integrated machine independently developed by our company. This model supports time-sensitive two-dimensional code unlocking method, two-dimensional code dynamic refresh, self-registration through WeChat applet, no need to download APP, no need Waiting for card issuance and registration, the applet opens at any time, and has functions to add, delete, and manage users. The operation is simple, convenient and fast.
The panel designed with integrated, all-metal frame, glass panel, touch button appearance, high-definition scanning lens, fast scanning speed, high recognition rate, double fill light design, clear code scanning day and night.Compatibility is strong and can be connected to any access controller that supports Wiegand input.
It is suitable for various scenarios, and supports sensing RFID cards and QR codes. It can be used in community management, visitor management, hotel management, unmanned supermarkets and other fields.
Support swiping card to open the door, scanning QR code to open the door, swiping ID card to open the door, a variety of wireless door opening methods, get rid of the traditional key, easy to operate.

QRT378 series QR code integrated machine is a new generation of integrated machine independently developed by our company. This model supports time-sensitive two-dimensional code unlocking method, two-dimensional code dynamic refresh, self-registration through WeChat applet, no need to download APP, no need Waiting for card issuance and registration, the applet opens at any time, and has functions to add, delete, and manage users. The operation is simple, convenient and fast.

The panel designed with integrated, all-metal frame, glass panel, touch button appearance, high-definition scanning lens, fast scanning speed, high recognition rate, double fill light design, clear code scanning day and night.Compatibility is strong and can be connected to any access controller that supports Wiegand input.

It is suitable for various scenarios, and supports sensing RFID cards and QR codes. It can be used in community management, visitor management, hotel management, unmanned supermarkets and other fields.

Support swiping card to open the door, scanning QR code to open the door,  swiping ID card to open the door, a variety of wireless door opening methods, get rid of the traditional key, easy to operate.



Model

Description

Wiring Definition

QRT378-B-S

WG+RS485+USB

Standard integrated machine version

Support get UID of second generation Chinese ID cardsIC cards

integrated machine mode: redDC 12VblackGND yellowNC pinkCOMblueNOlight blueMAG

grayBUT                                                                           reader moderedDC 12VblackGND greenWD0

whiteWD1grayBEEP light blueGLED

485 output redDC 12VblackGND brown485A+)light green485B(-)



Features


 Development of a advanced QR code access control technology

 With antenna inside, and the working frequency is 13.56MHz

 support get UID of MFCPUNFC(Simulation card)Desfire EV1second generation Chinese ID cards and QR code

 support output by WeigandRS485USB


Params.

description

Card type

UltralightMF1S50,S70)、DESFire EV1NTagNFCSimulation card)、CPUChinese ID cardsUIDand other ISO/ IEC14443A cards15693 cardselectronic QR code, paper QR code



Communication Interface

WeigandRS485USB

Working voltage

DC 12V±5%

Working current

DC 12V: less than 200mAUSB 5V: less than 500mA

Working temperature

-10℃~+50℃

Storage temperature

-20℃~+80℃

Working humidity

20% ~ 80%

Code types

QRUPC-A/E0/E1Data MatrixMatrix2 of 5PDF417Code 11/39/93128CodabarInterleaved 2 of 5

Sensing angle

Rotate 360°angle ±45°

Sensing distance

IC cards: longer than 5cm Chinese ID cards: longer than4cm, QR code: 5-18cmdepends on IC card typescanning angleambient light intensity

Scanning angle

34°H),26°V

Resolution ratio

648H×488V

Sensing speed

100msaverage

USB wire

USB to Mini USBL=1500mm±0.3mm

size

138*58*22.67(tolerance±0.3)
