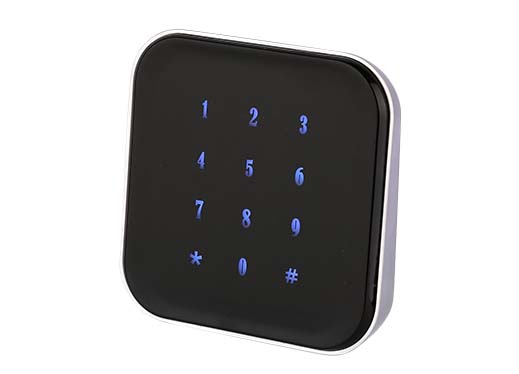

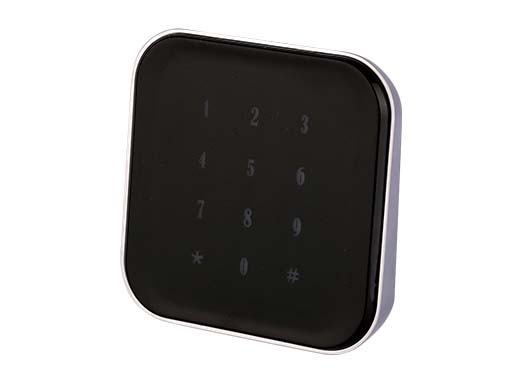

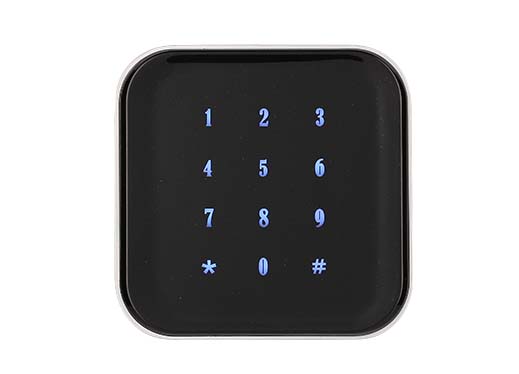

R332M-APLUSis a access control reader has the characteristics of super cost-effective, super anti-interference ability, many types of card readers, convenient and flexible use methods, etc. Built-in high-performance microprocessor chip, suitable for access control, visitor management, access gates, unmanned supermarkets, building automation, elevator control, etc.
Supports flexible configuration of various output parameters of the card reader through the configuration card, such as card key, card number output format, Wiegand mode, card reading mode, etc. This makes the card reader very convenient to meet various personalized customer needs, reduce inventory and improve service efficiency.
Provide an independent card issuing software system, the third-party access control system does not need any modification, and the seamless connection between the card issuing and the third-party access control management system can be realized.
Model | Description |
ZR332E | Access Control Reader for ID cards，support EM4100, EM4102, EM4200 compatible card; support ID thick card, ID thin card, ID key-chain card; Support WG34 WG26 communication. |
ZR332M/B | Support get physical card number of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support get physical card number of CPU; Support get physical card number of Chinese Identity card; Support WG34 WG26 communication. |
ZR332M/F | Support get physical card number of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support get physical card number and encrypted content of CPU/MIFARE S50/S70; Support get physical card number of Chinese Identity card; Support get physical card number of ISO15693 card(eg： ICODE 2 ); Support get physical card number of HID iClass; Support WG34 WG26 WG66communication. |
R332M/K | Support get physical card number of MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; Support get physical card number and encrypted content of CPU/MIFARE S50/S70; Support get physical card number of Chinese Identity card; Support get physical card number of ISO15693 card(eg： ICODE 2 ); Support get physical card number of HID iClass; Support get physical card number of FELICA card（eg: HongKong Octopus card）; Support WG34 WG26 WG66communication. |
Features
◇ Independent research and development for anti-duplication, safe and stable;
◇ Sensing distance is 5cm. (Depends on work environments and card types);
◇ Using high-performance microprocessor chip；
◇ The data reception time is less than 120ms within the effective distance；
◇ Anti-static, anti-misconnection and other multiple protection design；
◇ Strong anti-interference ability between metal shielding and card reader；
◇ The key, format, output data card number, and content can be flexibly configured with various output parameters of the read head through the configuration card, supporting contactless card smart card types；
◇ The buzzer sound is clear and loud, and will not be disturbed.
Params. | description |
Protocol standard | ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 |
Frequency | 13.56MHz, 125KHz |
Working voltage | DC 12V（±5%） |
Working current | Less than200mA |
Working temperature | -10℃~+60℃ |
Storage temperature | -20℃~+80℃ |
Working humidity | 15% ~ 90% |
Output format | Optional WG26, WG34, WG66 |
Wiring Definition | Red(VCC); Black(GND); White(D1); Green(D0); Purple(Beer); Gray(CLED); Yellow(output WG26 connect to GND); |
Size | 93*93*19mm(tolerance±0.2) |
