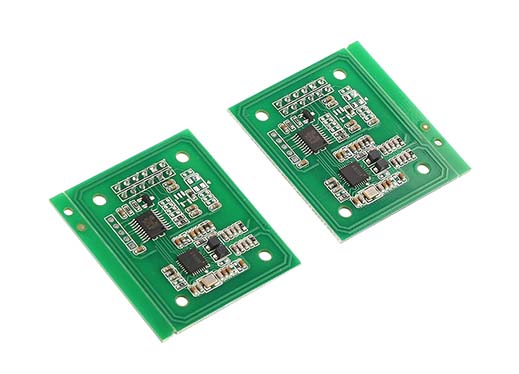

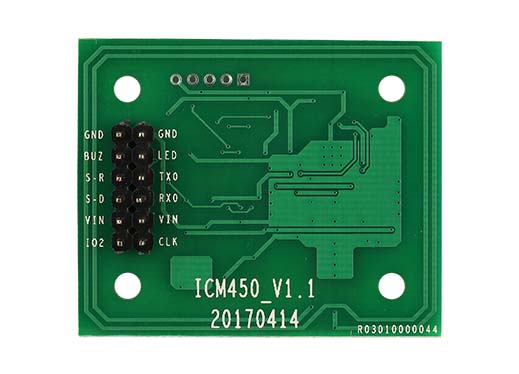

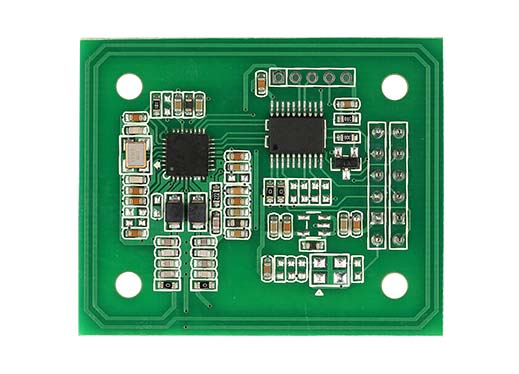

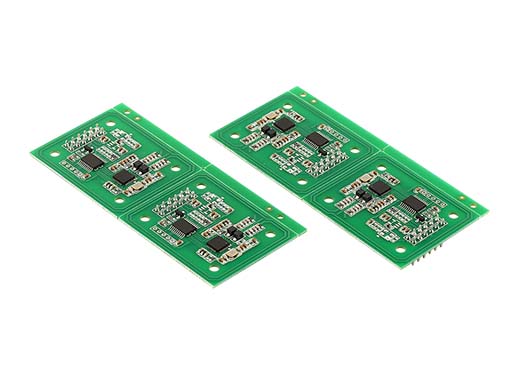

ICM450 series module is a 13.56MHz high-frequency multi-protocol read-write card module. It adopts a dedicated contactless communication chip, with stable performance and powerful functions.Fully supports various protocols of 13.56MHz: ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693. This series of modules provides a variety of interface options and adopts an integrated antenna design, which integrates small size, ease of use and reliability. Powerful card reading function, stable card reading performance. Can be customized according to customer requirements, widely used in access control system, school management, community management, membership management, asset management, anti-counterfeiting control and other fields.
Series | Models | Interface | Voltage | Cards type |
ICM450A | ICM450A - T(M150) | TTL | 5V | Get UID of card under protocol ISO/IEC14443A, read/write S50/S70/FM11RF08 |
ICM450A - W(M151) | WG34 |
ICM450A - W(M218) | WG26 |
ICM450AL | ICM450AL - T(M153) | TTL | 3.3V |
ICM450A+ | ICM450A+- T(M155) | TTL | 5V | Get UID of card under protocol ISO/IEC14443A, read/write S50/S70/ULT/NTAG/FM11RF08/FM1208，ISO/IEC14443A APDU command |
ICM450A+L | ICM450A+L - T(M157) | TTL | 3.3V |
ICM450B | ICM450B - T(M163) | TTL | 5V | Get UID of card under protocol ISO14443A/B，read/write MS50/S70/ULT/NTAG/FM11RF08 |
ICM450BL | ICM450BL - T(M165) | TTL | 3.3V |
ICM450C | ICM450C - T(M167) | TTL | 5V | Read only protocol ISO/IEC15693， read/write ICODE |
Features
◇ Antenna integrated, easy to install；
◇ Adopt non-contact communication chip, stable performance and good compatibility；
◇ Support ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 protocol, can connect to software demonstration;
◇ Various communication interfaces are available: TTL, IIC, Wiegand 34, Wiegand 26；
◇ Provide demo software and secondary development kit.
