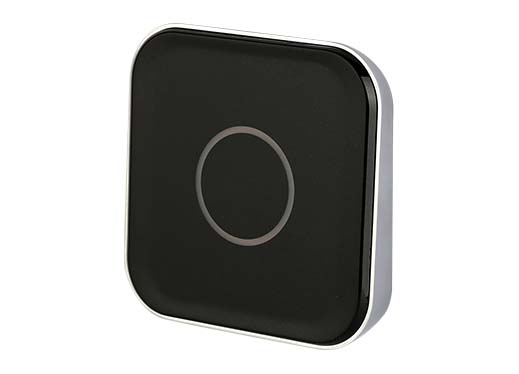

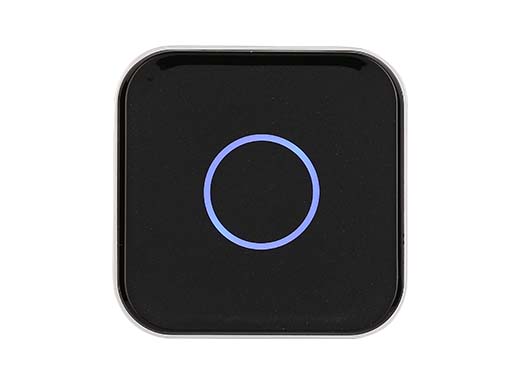

R330EM-RM(R1625) Access Control Card Reader Specification

The R1625 reader supports common 125KHz and 13.56MHz RFID smart cards/tags including: MIFARE Classic, MIFARE DESFire, NTAG2xx, EM4xxx, CPU, Resident Identity Cards, as well as ISO standards such as ISO14443A/B, ISO18092, NFC, and others.

The reader supports multiple communication methods, Wiegand, RS485, providing flexible integration options for a variety of applications. The reader is also equipped with a corresponding management tool, through which the reader can be upgraded with firmware and updated with configuration parameters, allowing for greater flexibility in meeting customer needs.

Card readers are widely used in many vertical markets and hardware systems, including access control, time and attendance, toll collection, anti-theft, patrol and so on.

Product Feature

Support two RFID frequencies (125KHz and 13.56MHz)

Supports reading CPU card encrypted content, anti-copying, high security

Support tamper-proof alarm

Support a variety of communication methods, Wiegand, RS485

Support RS485 upgrade firmware

Support ISO14443A, ISO14443B, ISO18092

Technical Parameters

Dimensions	93mm×93mm×19.3mm±0.5mm
Weight	Bare metal about g
Supply Voltage Range	DC 9~15V
Operating current	Standby current approx. 100mA, operating current approx. 150mA when powered by 12V
Operating Temperature	-20℃ ~ 65℃ (-4℉ ~ 149℉)
Operating Humidity	20 - 80% non-condensing
Storage temperature	-40℃ ~ 80℃ (-40℉ ~ 176℉)
Operating Frequency	13.56MHz, 125KHz
Smart Card and Protocol (HF)	MIFARE Classic, MIFARE DESFire EV1/2, MIFARE Ultralight.
	MIFARE Ultralight C, CPU, NFC Forum type 1, 2, 4 tags, SFZ card
	ISO14443A, ISO14443B
Smart cards and protocols (LF)	em4100/4102/4200/4305/4450
Reading distance	0~3cm, related to installation environment and card
Communication Method	Wiegand, RS485
Installation method	Wall-mounted
Protection level	IP65
Certification	None
Warranty	One year warranty

Card support

Frequency	Protocol	Card type	○ UID Read only
Frequency	Protocol	Card type	● UID and content read
13.56MHz	ISO14443A	MIFARE Classic，Mini	●
		MIFARE Classic EV1	●
		MIFARE DESFire Light	○
		MIFARE DESFire EV1	○
		MIFARE DESFire EV2/EV3	○
		MIFARE PLUS S，X	○
		MIFARE Smart MX	○
		MIFARE Ultralight	○
		MIFARE Ultralight C	○
		MIFARE Ultralight EV1	○
		NTAG 2xx	○
		CPU	●
	ISO14443B	CPU	○
	ISO14443B	SFZ Card	○
	ISO18092	NFC Forum Tag type1、2、4	○
125KHz	ISO 11785	EM4100/4102/4200/4305/4450	○

Product size（Unit：mm）

ZZTeco

Wiring define
No.	Color	Description of function
1	Red	Power supply DC +9~15V
2	Black	GND
3	Green	WG output D0
4	White	WG output D1
5	Purple	Red LED & buzzer external control
6	Gray	Green LED external control
7	Yellow	Alarm output
8	Blue	RS485 A+
9	Orange	RS485 B-
