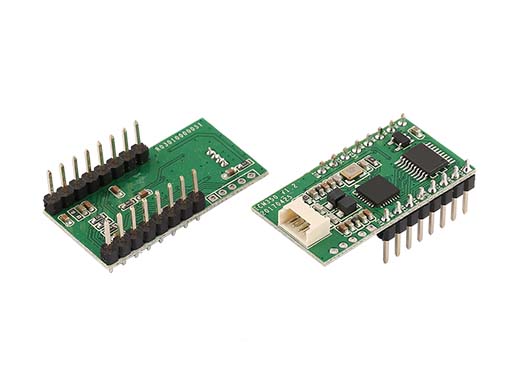

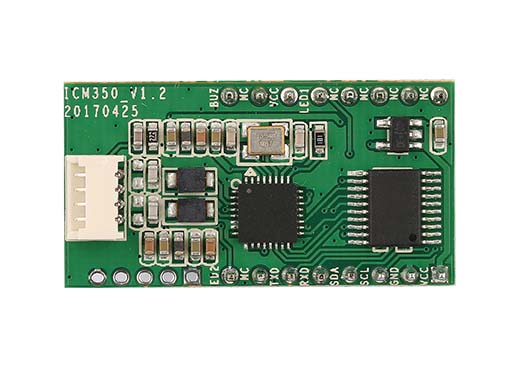

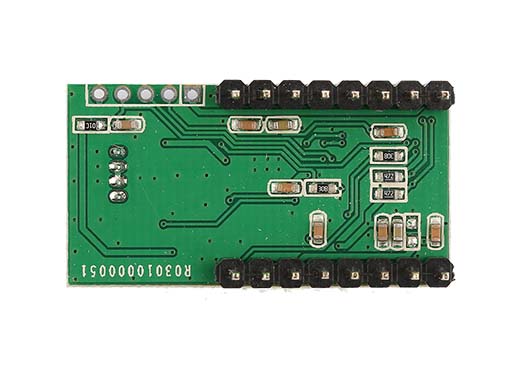

ICM350 Series module is multi-protocol card reader module of 13.56MHZ high frequency ,which compliant with ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 international standards. It adopts special non-contact communication chip, with stable performance and powerful function, and provides a variety of interface. Can be customized according to customer requirements, widely used in access control systems, school management, community management, membership management, asset management, anti-counterfeiting control and other fields.
Series | Models | Interface | Voltage | Cards type |
ICM350A | ICM350A – T (M175) | TTL | 5V | Get UID of card under protocol ISO/IEC14443A, read/write S50/S70/FM11RF08 |
ICM350A –W(M176) | WG34 |
ICM350A – W(M224) | WG26 |
ICM350AL | ICM350AL - T(M178) | TTL | 3.3V |
ICM350A+ | ICM350A+- T(M180) | TTL | 5V | Get UID of card under protocol ISO/IEC14443A, read/write S50/S70/ULT/NTAG/FM11RF08/FM1208，ISO/IEC14443A APDU command |
ICM350A+L | ICM350A+L - T(M182) | TTL | 3.3V |
ICM350B | ICM350B - T(M188) | TTL | 5V | Get UID of card under protocol ISO14443A/B，read/write MS50/S70/ULT/NTAG/FM11RF08 |
ICM350BL | ICM350BL - T(M190) | TTL | 3.3V |
Features
◇ Adopt non-contact communication chip, stable performance and good compatibility；
◇ Support ISO/IEC14443A, ISO/IEC14443B, ISO/IEC15693 protocol,
◇ Various communication interfaces are available: TTL, IIC, Wiegand 34, Wiegand 26；
◇ Provide demo software and secondary development kit.
