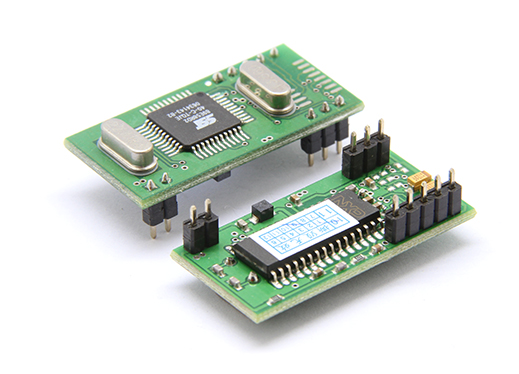

IDM20 series ID card module, in line with ISO14443 TYPEA/B international standard, supports obtaining ID card information, and can verify the validity of ID card. Provide USB, TTL interface communication, small size, compact structure, durable, very suitable for embedded and handheld computers, tablet computers, smart locks, mobile devices, access control, express delivery, logistics and other fields.
IDM20 series ID card module, in line with ISO14443 TYPEA/B international standard, supports obtaining ID card information, and can verify the validity of ID card. Provide USB, TTL interface communication, small size, compact structure, durable, very suitable for embedded and handheld computers, tablet computers, smart locks, mobile devices, access control, express delivery, logistics and other fields.
Models | Interface | Voltage | Cards type |
IDM20(SM15) | TTL/USB | 5V | Get UID of ISO14443A/B，S50/S70/ULT/NTAG/FM11RF08/FM1208，Chinese ID card |
Features
◇ Small size, easy to install；
◇ Get UID of ISO14443A/B，S50/S70/ULT/NTAG/FM11RF08/FM1208，Chinese ID card
Params | Description |
Protocol | ISO/IEC14443A、ISO/IEC14443B |
Frequency | 13.56MHz |
Baud rate | 115200bit/s |
Power | DC5V（±5%） |
Working current | < 200mA |
Communication Interface | TTL，USB
|
module embedding | ＞20mm （Depends on work environments and card types） |
Operating distance | IC Card、UID of Chinese 2nd-generation ID card |
Operating temperature | -10℃~+65℃
|
storage temperature | -20℃~+80℃
|
Working humidity | 15%~90% |
size | 50*10*14mm (tolerance：±1mm) |
Size
Pin definition
Pin No. | Name | Description |
J6 | ||
1 | VCC | Power |
2 | SWDIO | Data |
3 | SWCLK | Clock |
4 | RESET | Reset |
5 | GND | Ground |
